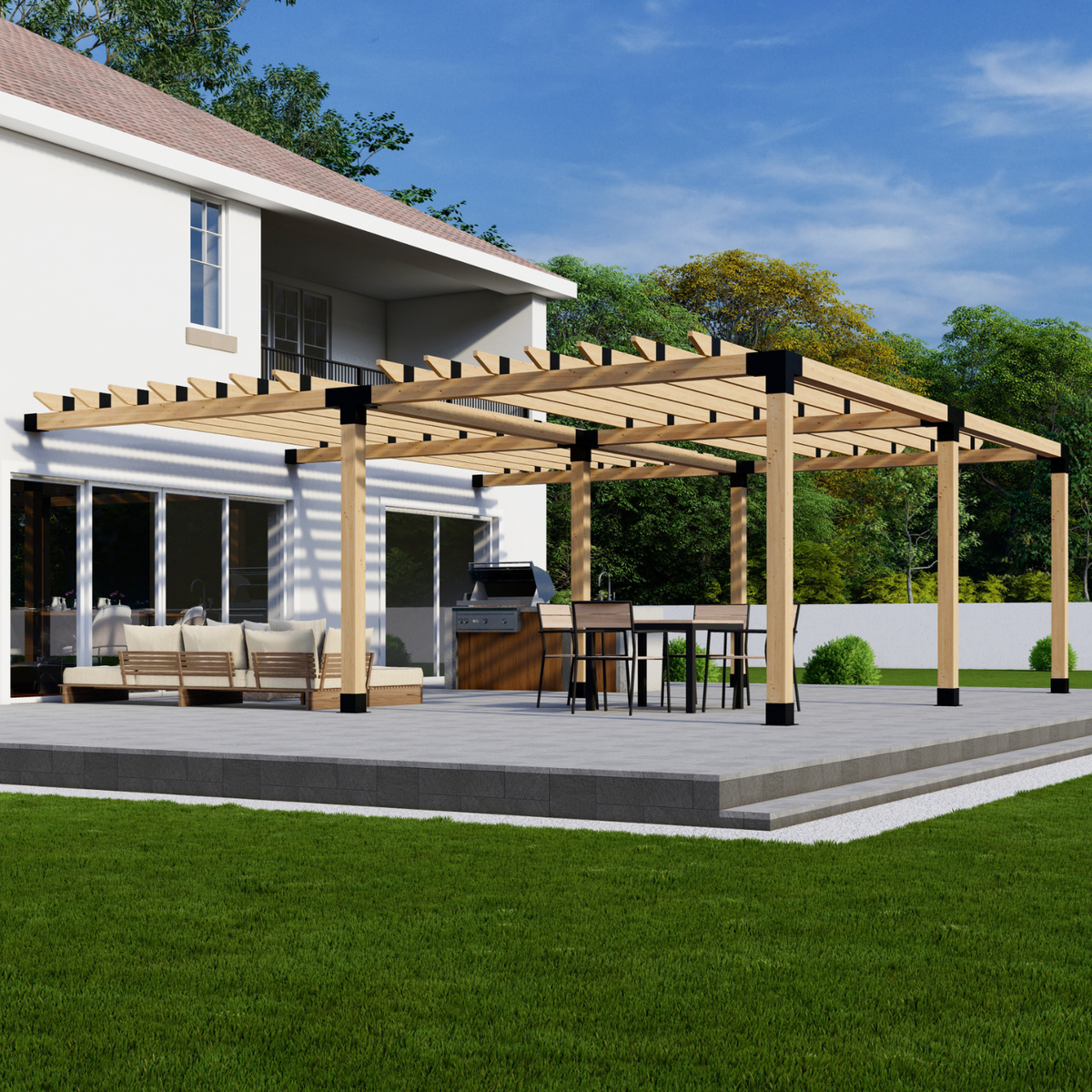

Build a custom rafter-roof pergola attached to your home — any size up to 24'x24' — with the Zen Pergola DIY Attached Bracket Kit with Roof Rafters. This complete hardware kit includes all laser-cut, laser-welded steel brackets for a 6-post attached structure with 3 wall mount brackets, plus 42 roof rafter brackets for a traditional rafter-atop-beam roof with optional overhangs. Choose 4x4 and 2x4 or heavy-duty 6x6 and 2x6 brackets. Stainless steel screws included. 5-year warranty. Ships from Boise, Idaho. Lumber and anchoring hardware not included.
- Attached to house — 6-post layout with 3 wall mount brackets — mounts directly to your home’s wall or ledger board using 3 wall mount brackets, requiring only 6 ground posts for a clean, integrated look.
- Traditional rafter roof with optional overhangs — classic rafter-over-beam roof design with the ability to extend rafters beyond the beams for an architectural overhang detail.
- Any size up to 24'x24' (4 blocks) — flexible bracket system that scales to any custom dimension within the maximum footprint.
- 42 roof rafter brackets included — full complement of rafter brackets for the traditional roof style.
- Choice of bracket size — 4x4 and 2x4 brackets (14-gauge steel) for standard builds, or 6x6 and 2x6 brackets (12-gauge steel) for heavy-duty construction.
- Laser-cut and laser-welded steel — precision manufacturing for tight tolerances and structural integrity in every bracket.
- Premium weather coating — engineered to withstand extreme outdoor conditions for long-term durability.
- Pre-drilled holes — fits common lumber sizes (4x4, 6x6, 2x4, 2x6) with pre-drilled attachment points for accurate assembly.
- Stainless steel #12 wood screws included
- 5-year warranty on all brackets
- Ships direct from Boise, Idaho
Not included: Lumber/wood and anchoring hardware for both post base brackets and wall mount brackets (purchased locally).
How this compares to other Zen Pergola attached kits:
| Kit | Roof Style | Shade |
|---|---|---|
| Attached – Roof Rafters (this kit) | Traditional rafters + optional overhangs | Open (lumber only) |
| Attached – Slatted Roof | Inline slats (straight or angled) | Partial (slatted) |
| Attached – With Canopies | Canopies (8’x8’ to 12’x12’) | Up to 95% UV block |

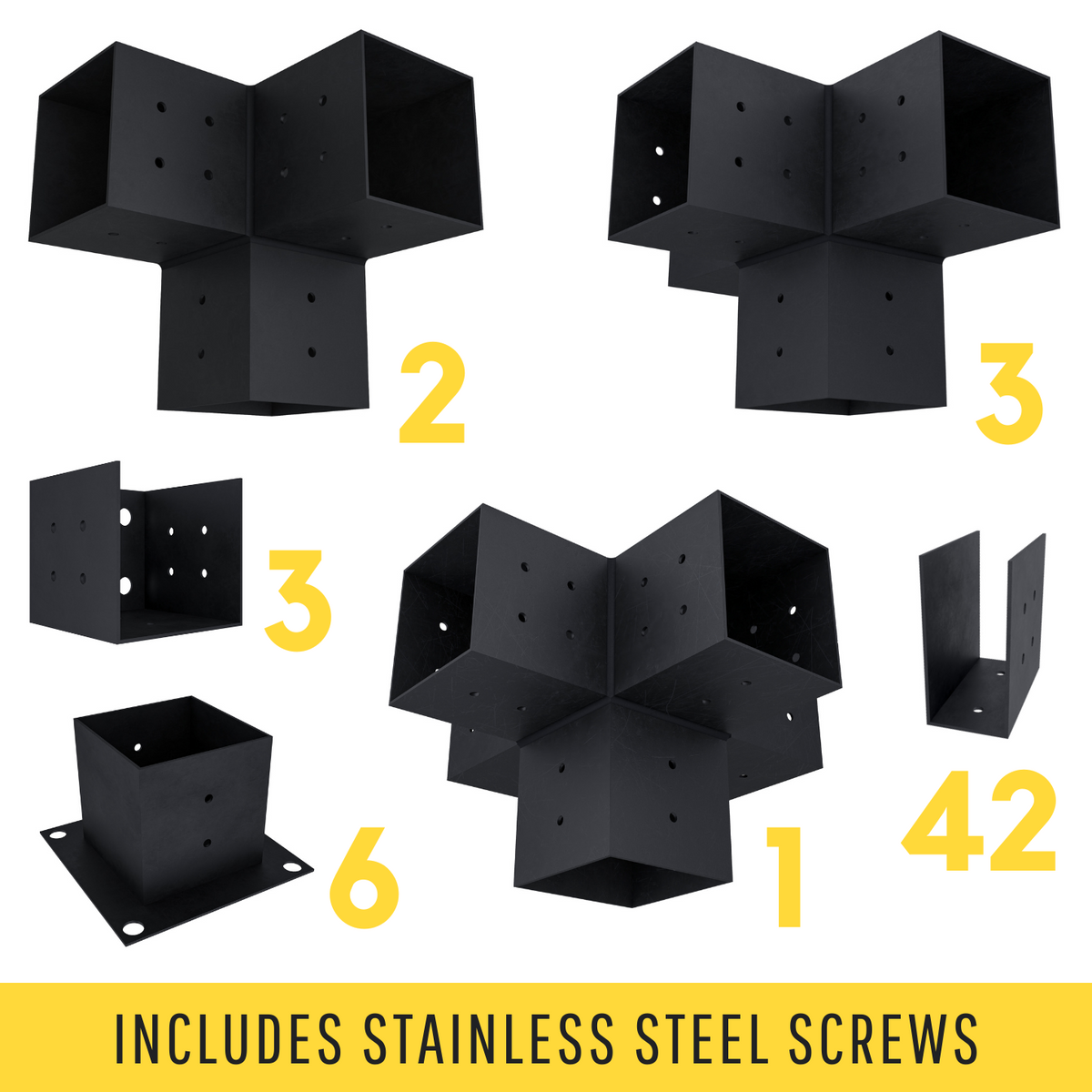

What's Included in the Kit
| Component | Qty |
|---|---|
| Post base brackets | 6 |
| Wall mount brackets | 3 |
| Corner 3-arm brackets | 2 |
| Middle 4-arm brackets | 3 |
| Central 5-arm bracket | 1 |
| Roof rafter brackets | 42 |
| Stainless steel #12 wood screws | Included |
Bracket Options Compared
| Bracket Size | Lumber | Steel Gauge | Best For |
|---|---|---|---|
| 4x4 and 2x4 | 4x4 posts, 2x4 rafters | 14-gauge | Standard residential builds |
| 6x6 and 2x6 | 6x6 posts, 2x6 rafters | 12-gauge | Heavy-duty, larger builds |
Frequently Asked Questions
How does this differ from the attached canopy kit?
This kit uses traditional roof rafters (lumber) for an open-sky look with optional overhangs. The canopy kit includes 4 HDPE shade canopies that block up to 95% of UV rays for full shade coverage. Both are 6-post attached kits with wall mount brackets.
Is lumber included?
No — lumber and anchoring hardware are not included. All brackets and stainless steel screws are included.
What is the warranty?
5-year manufacturer warranty on all brackets from Zen Pergola.
