Build a custom freestanding slatted-roof pergola up to 24'x24' with this Zen Pergola DIY Bracket Kit. Featuring the same premium laser-cut, laser-welded steel bracket system as the rafter-roof kit — but configured for inline roof slats in either straight or angled orientation for a modern, contemporary aesthetic. Includes all brackets, 56 roof slat brackets, and stainless steel screws. Choose 4x4 and 2x4 or heavy-duty 6x6 and 2x6 brackets. 5-year warranty. Ships from Boise, Idaho. Lumber and post anchoring hardware not included.

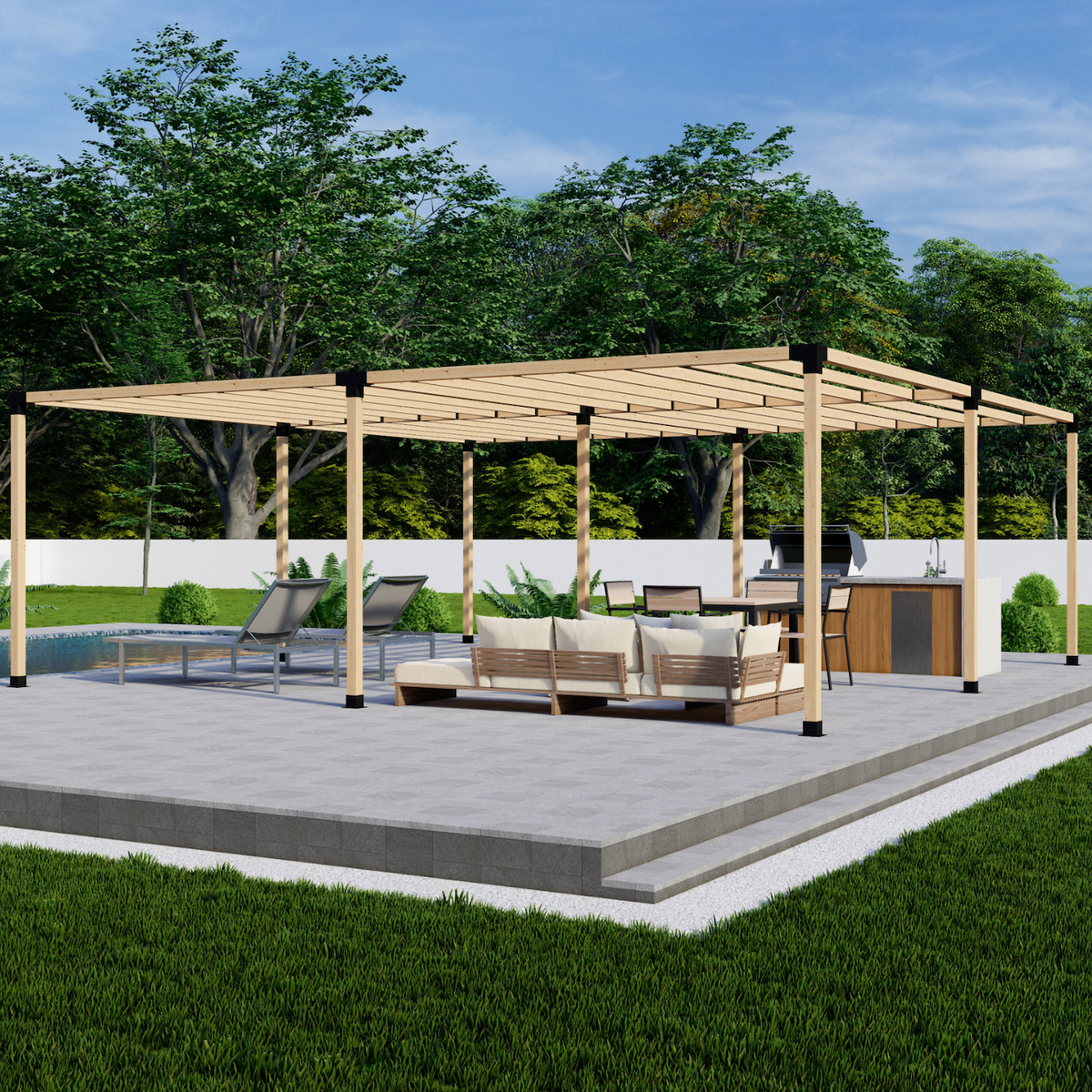

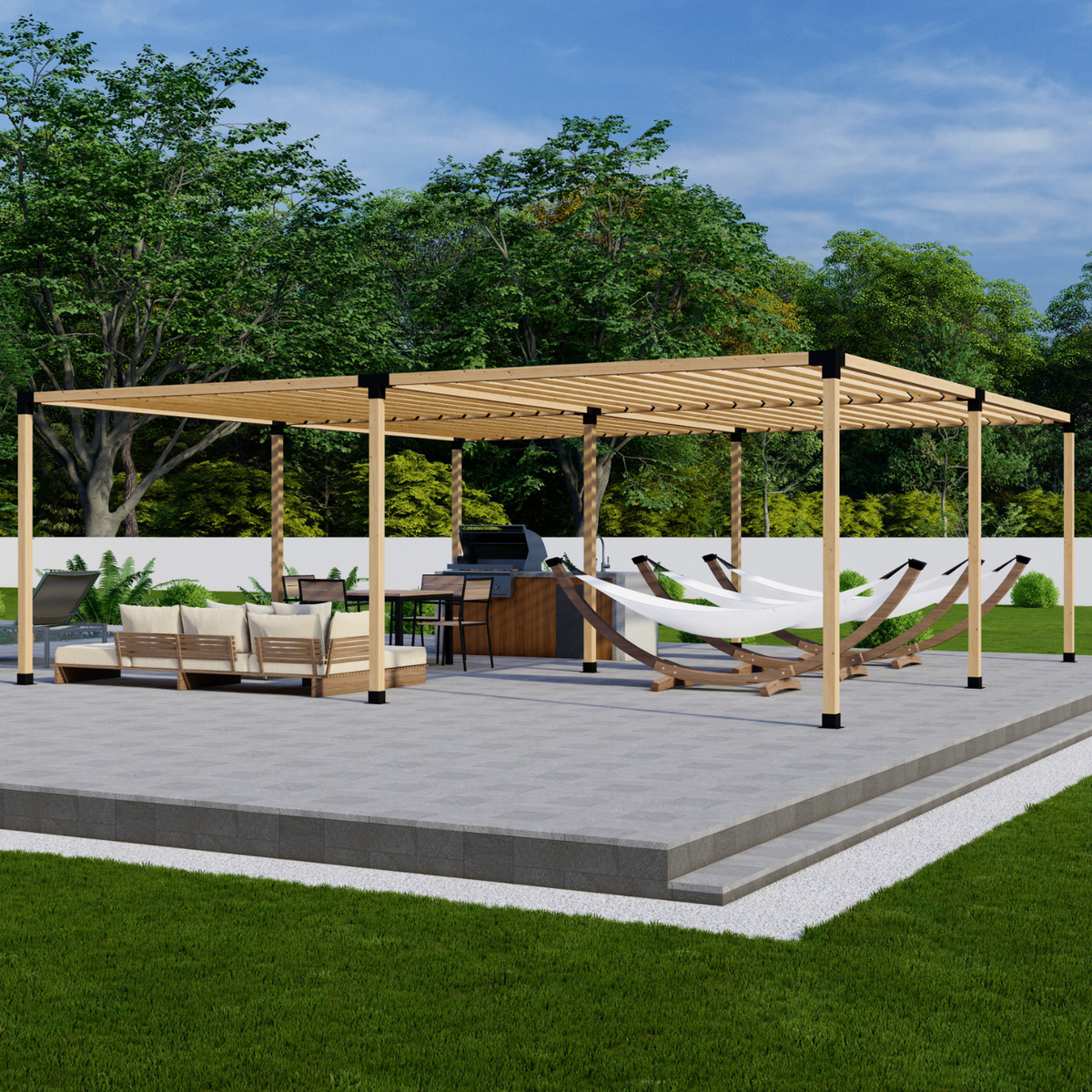

- Slatted roof style — straight or angled slat orientation — inline roof slats create a clean, modern pergola aesthetic with partial shade and open-sky visibility; choose straight or angled slat layout to match your design preference.
- Freestanding 9-post layout — stable, fully freestanding structure with no attachment to a home or existing structure required.
- Any size up to 24'x24' (4 blocks) — flexible bracket system that scales to your exact custom dimensions within the maximum footprint.
- Choice of bracket size — 4x4 and 2x4 brackets (14-gauge steel) for standard builds, or 6x6 and 2x6 brackets (12-gauge steel) for heavy-duty construction.
- 56 roof slat brackets included — more slat brackets than the rafter kit (56 vs. 42 rafter brackets), providing the hardware density needed for the slatted roof style.
- Laser-cut and laser-welded steel — precision manufacturing for tight tolerances, clean lines, and structural integrity in every bracket.
- Premium weather coating — engineered to withstand extreme outdoor conditions for long-term durability without rusting or degrading.
- Pre-drilled holes — fits common lumber sizes (4x4, 6x6, 2x4, 2x6) with pre-drilled attachment points for easy, accurate assembly.
- Stainless steel #12 wood screws included — all required screws included; no additional hardware purchase needed.
- 5-year warranty on all brackets — backed by Zen Pergola’s manufacturer warranty.
- Ships direct from Boise, Idaho
Not included: Lumber/wood and anchoring hardware for securing post base brackets to a solid foundation (purchased locally).
How this differs from the Rafter Roof Kit: This kit is configured for a slatted inline roof (straight or angled slats) instead of traditional roof rafters atop beams. It includes 56 roof slat brackets vs. 42 rafter brackets. Both kits share the same post base, corner, middle, and central arm brackets and the same 9-post freestanding layout.
Who it's for: Homeowners and DIYers who want a modern, slatted-roof freestanding pergola up to 24'x24' with customizable slat orientation — built with premium steel bracket hardware that scales to any size.

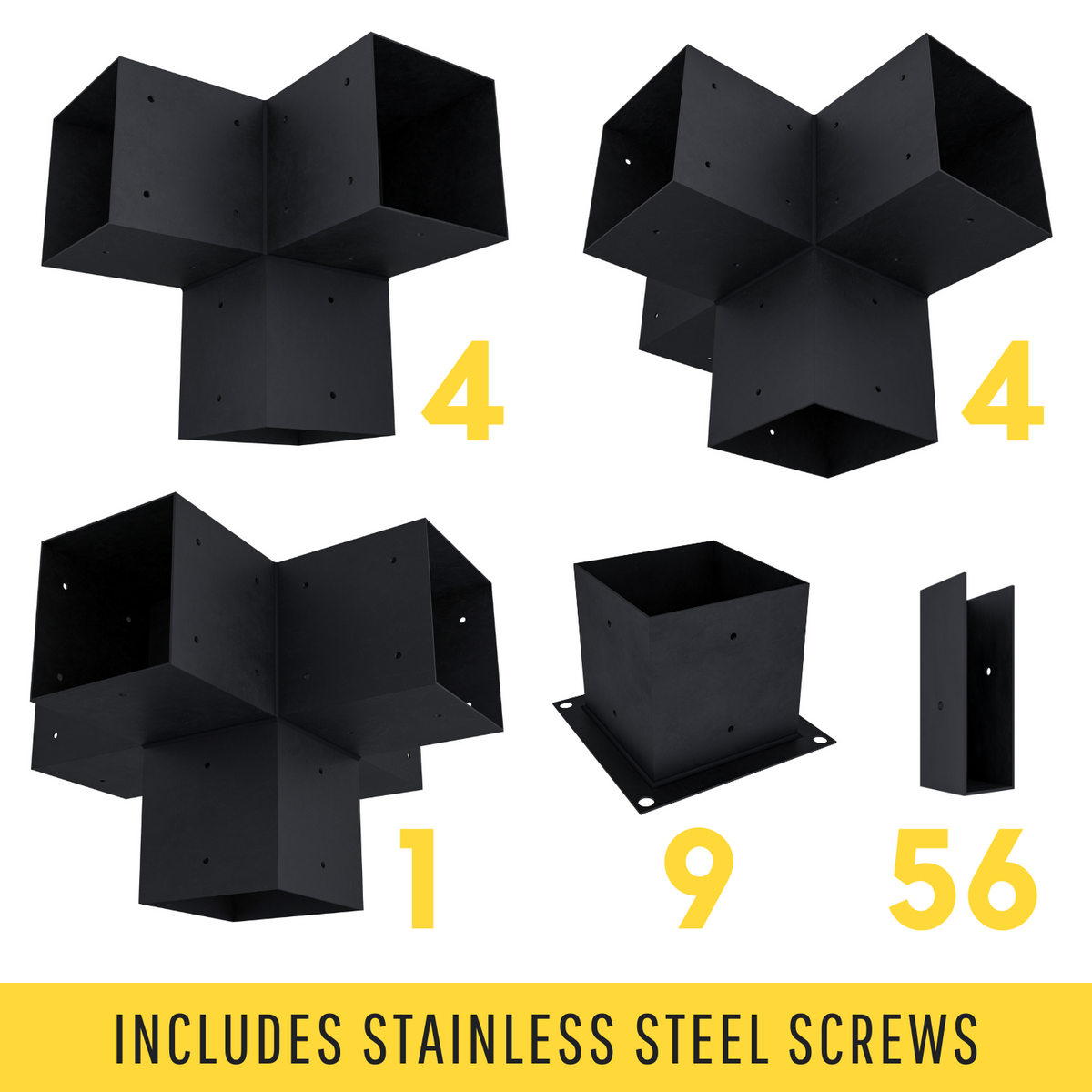

What's Included in the Kit
| Component | Qty |
|---|---|
| Post base brackets | 9 |
| Corner 3-arm brackets | 4 |
| Middle 4-arm brackets | 4 |
| Central 5-arm bracket | 1 |
| Roof slat brackets | 56 |
| Stainless steel #12 wood screws | Included |
Bracket Options Compared
| Bracket Size | Lumber | Steel Gauge | Best For |
|---|---|---|---|
| 4x4 and 2x4 | 4x4 posts, 2x4 slats | 14-gauge | Standard residential builds |
| 6x6 and 2x6 | 6x6 posts, 2x6 slats | 12-gauge | Heavy-duty, larger builds |
Frequently Asked Questions
What is the difference between straight and angled slats?
Straight slats run parallel to the beams horizontally, while angled slats are set at an angle for a distinctive architectural look. Both are supported by the same bracket kit.
Is lumber included?
No — lumber and post anchoring hardware are not included and need to be purchased locally. All brackets and stainless steel screws are included.
What is the warranty?
All brackets carry a 5-year manufacturer warranty from Zen Pergola.
