Build a custom freestanding pergola up to 24'x24' with the Zen Pergola DIY Bracket Kit. This complete hardware kit includes all the laser-cut, laser-welded steel brackets you need — post bases, corner, middle, and central arm brackets, and roof rafter brackets — along with stainless steel screws. Choose 4x4 and 2x4 brackets or heavy-duty 6x6 and 2x6 brackets. Made to fit common lumber sizes with pre-drilled holes, premium weather coating for extreme conditions, and backed by a 5-year warranty. Shipped direct from Boise, Idaho. Lumber and post anchoring hardware not included.
- Freestanding pergola design — 9-post layout — supports a stable, fully freestanding structure with no attachment to a home or existing structure required.
- Any size up to 24'x24' (4 blocks) — flexible bracket system that scales to your exact desired dimensions within the maximum footprint.
- Choice of bracket size — 4x4 and 2x4 brackets (14-gauge steel) for standard builds, or 6x6 and 2x6 brackets (12-gauge steel) for heavy-duty construction.
- Traditional roof rafter style with optional overhangs — classic rafter-over-beam roof design with the option to extend rafters beyond the beams for an overhang aesthetic.
- Laser-cut and laser-welded steel — precision manufacturing ensures tight tolerances, clean lines, and structural integrity in every bracket.
- Premium weather coating — engineered to withstand extreme outdoor conditions for long-term outdoor durability without rusting or degrading.
- Pre-drilled holes — designed to fit common lumber sizes (4x4, 6x6, 2x4, 2x6) with pre-drilled attachment points for straightforward assembly.
- Stainless steel #12 wood screws included — all required screws included in the kit; no separate screw purchase needed.
- 5-year warranty on all brackets — backed by Zen Pergola’s industry-leading warranty for confidence in every build.
- Shipped direct from Boise, Idaho — direct-to-door delivery from the manufacturer.
Not included: Lumber/wood and anchoring hardware for securing post base brackets to a solid foundation (purchased locally).
Who it's for: Homeowners and DIYers who want to build a custom-sized freestanding pergola up to 24'x24' using their own lumber, with premium steel bracket hardware that removes the guesswork from layout, connections, and roof rafter attachment.

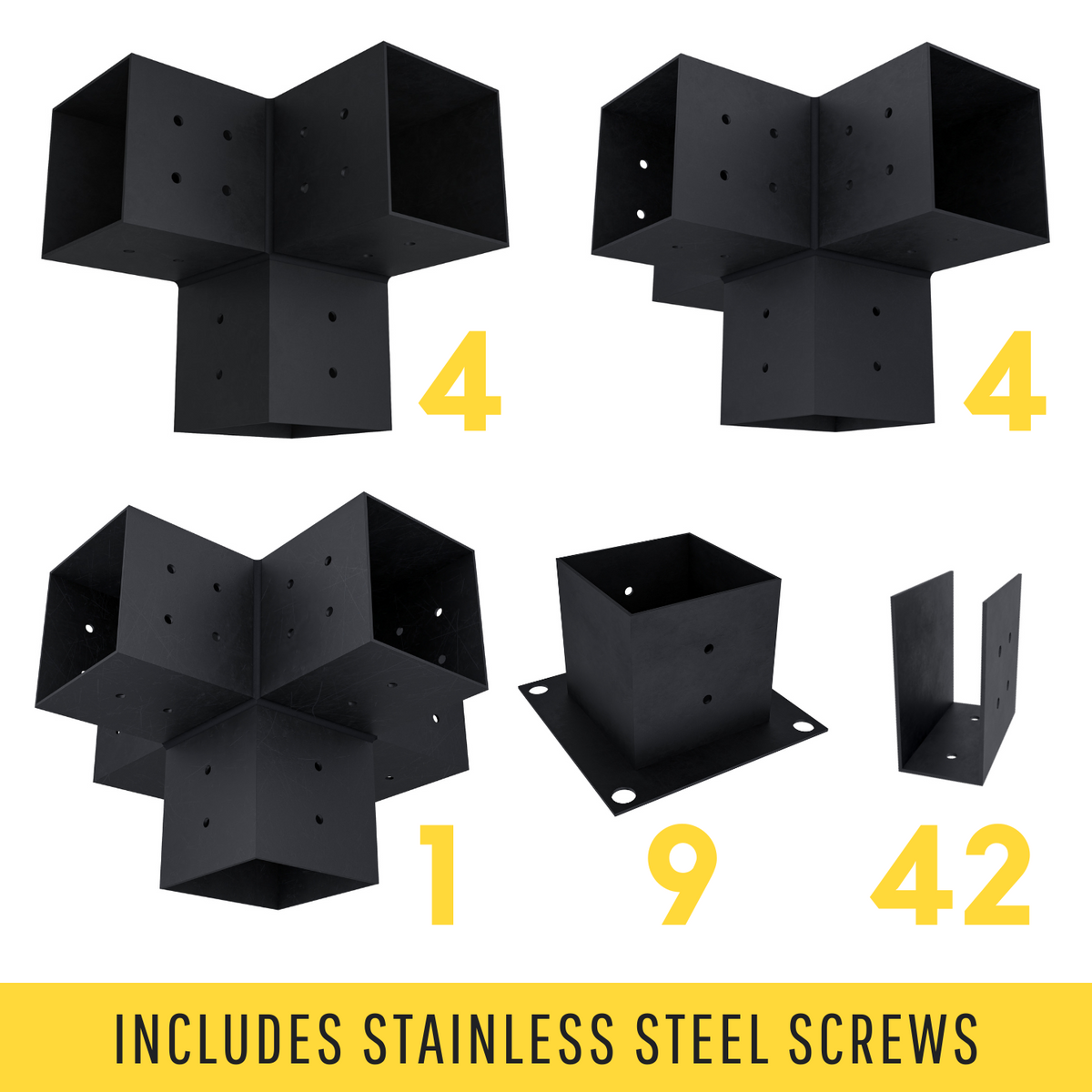

What's Included in the Kit
| Component | Qty |
|---|---|
| Post base brackets | 9 |
| Corner 3-arm brackets | 4 |
| Middle 4-arm brackets | 4 |
| Central 5-arm bracket | 1 |
| Roof rafter brackets | 42 |
| Stainless steel #12 wood screws | Included |
Bracket Options Compared
| Bracket Size | Lumber Compatibility | Steel Gauge | Best For |
|---|---|---|---|
| 4x4 and 2x4 | 4x4 posts, 2x4 rafters | 14-gauge | Standard residential builds |
| 6x6 and 2x6 | 6x6 posts, 2x6 rafters | 12-gauge | Heavy-duty, larger or heavier builds |
Frequently Asked Questions
Is lumber included?
No — lumber and post anchoring hardware are not included and need to be purchased locally. All brackets and stainless steel screws are included.
What sizes can I build?
Any custom size up to 24 feet x 24 feet using the 4-block, 9-post layout.
What is the warranty?
All brackets carry a 5-year manufacturer warranty from Zen Pergola.
